Monitoring DTC Status
- Connect GDS to "DATA LINK CONNECTOR (DLC)".
- IG key "ON", engine "OFF".

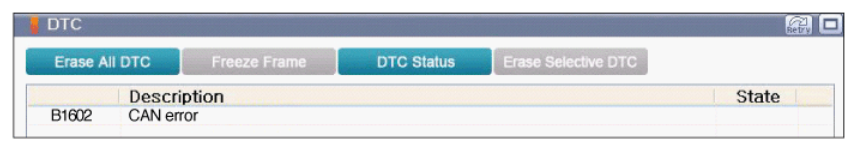

- Select "Diagnostic Trouble Codes (DTC)" with GDS.
- Monitor the diagnostic trouble code and present of the trouble code.
- Erase the DTC.
- Is the DTC present again?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in "APSM"(Passenger IMS control module)'s connector or was repaired and "APSM" memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
