Blind Spot Detection Radar Calibration

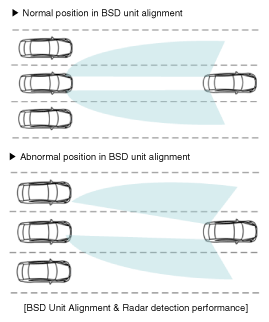

Fig 1: Blind Spot Detection Radar Calibration Procedure - Normal Position

Courtesy of HYUNDAI MOTOR AMERICA

To sense the cars exactly in the next lane with the radar, the direction of the sensor and the direction of the vehicle have to align.

This is BSD unit alignment. If this alignment is not performed as in illustration, the degradation of detection performance and the cause of false alarms.

The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do this align especially.

1. The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do BSD unit alignment using GDS.
2. Select "BSD Radar Calibration" procedure in BSD system.

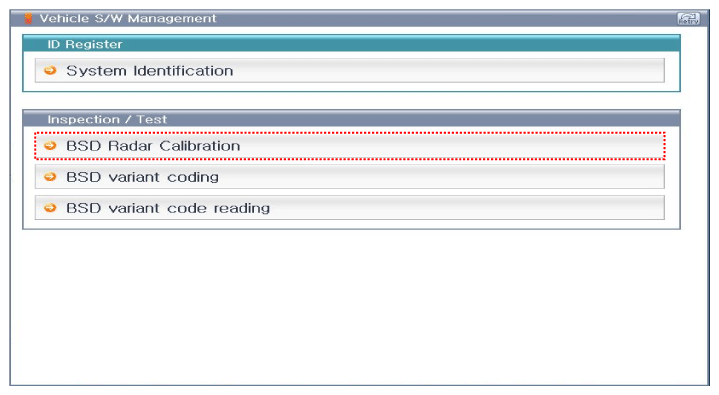

Fig 2: Display - BSD Radar Calibration Screen
Courtesy of HYUNDAI MOTOR AMERICA
3. Perform the "BSD Radar Calibration  " procedure according to the GDS screen message.

Fig 3: Display - BSD Radar Calibration Screen (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

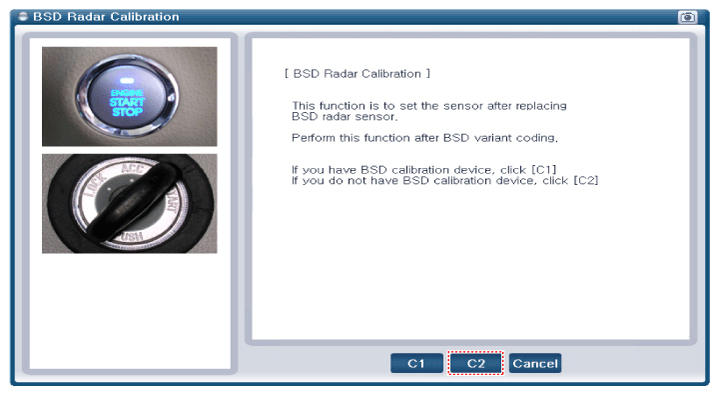

Fig 4: Display - BSD Radar Calibration Screen (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

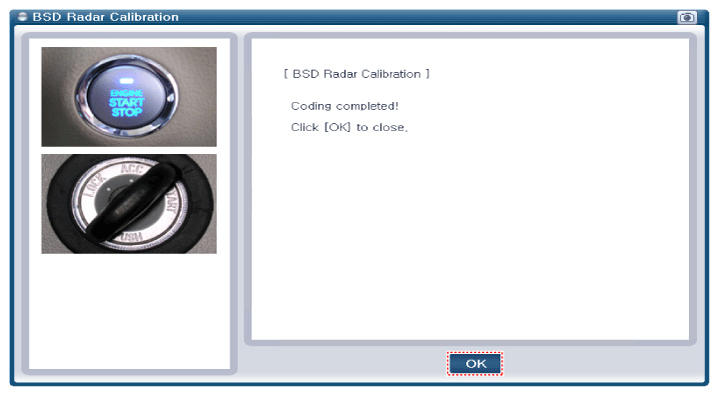

Fig 5: Display - BSD Radar Calibration Screen (3 Of 3)
