SRS Control Module Connector End View (M53)

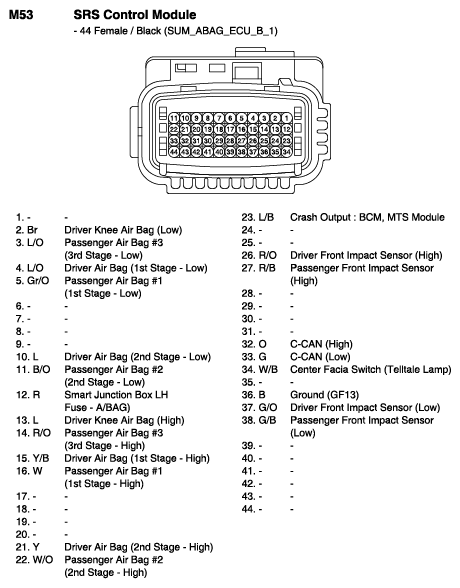

Fig 1: SRS Control Module Connector End View (M53)

G10769864

Courtesy of HYUNDAI MOTOR AMERICA
