Smart Cruise Control Module Connector End View (E64)

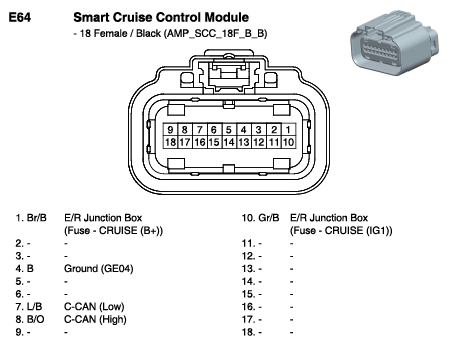

Fig 1: Smart Cruise Control Module Connector End View (E64)

G10769941

Courtesy of HYUNDAI MOTOR AMERICA
