Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

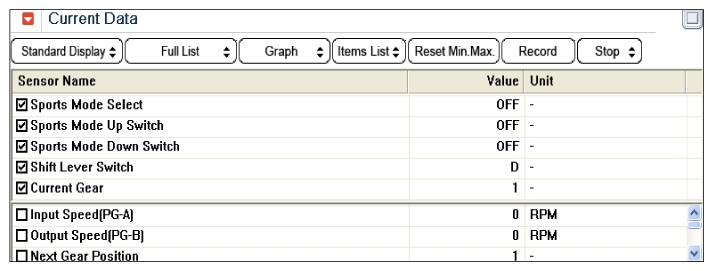

    Fig 1: Display - GDS Data Screen (D Range)
    G10530252Courtesy of HYUNDAI MOTOR AMERICA

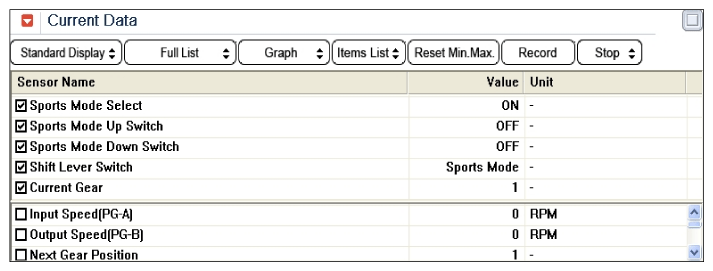

    Fig 2: Display - GDS Data Screen (Sports Mode ON)
    G10530253Courtesy of HYUNDAI MOTOR AMERICA

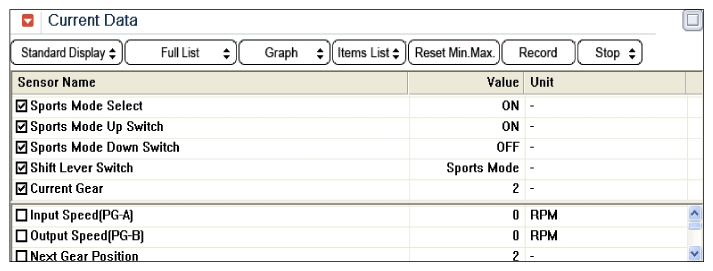

    Fig 3: Display - GDS Data Screen (Sports Mode Up, Switch ON)
    G10530254Courtesy of HYUNDAI MOTOR AMERICA
    Fig 4: Display - GDS Data Screen (Sports Mode Down, Switch ON)
    G10530255Courtesy of HYUNDAI MOTOR AMERICA
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
