Signal Waveform & Data

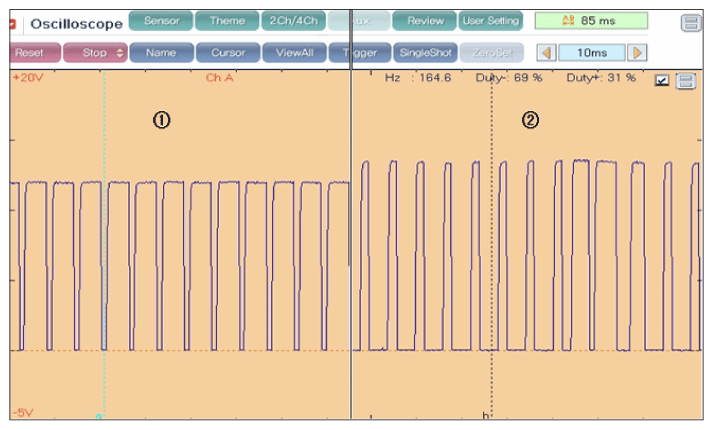

Fig 1: Scantool Display - Normal Signal Waveform (Idle Or No, Part And Full Electrical Load)

Courtesy of HYUNDAI MOTOR AMERICA

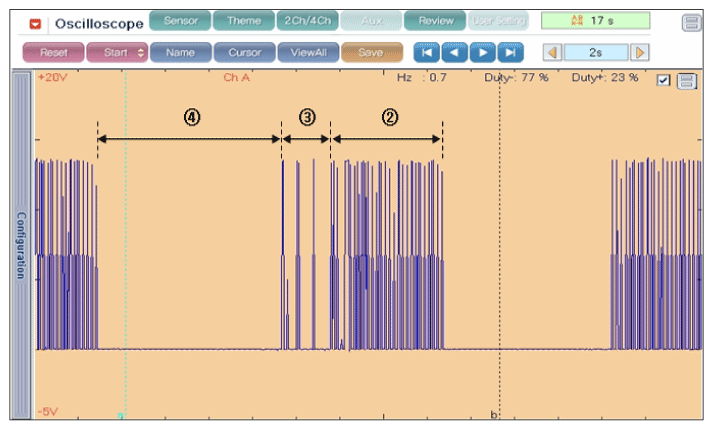

Fig 2: Scantool Display - Normal Signal Waveform (Idle Or No, Part And Full Electrical Load)

Courtesy of HYUNDAI MOTOR AMERICA

(1) Normal waveform with IG ON

(2) Normal waveform with Idle and no electrical load

(3) Normal waveform with Idle and part electrical load

(4) Normal waveform with Idle and full electrical load (A/C, Defrost, Head Lamp, Repeater, Audio, etc)
