Circuit Diagram: (A/T)

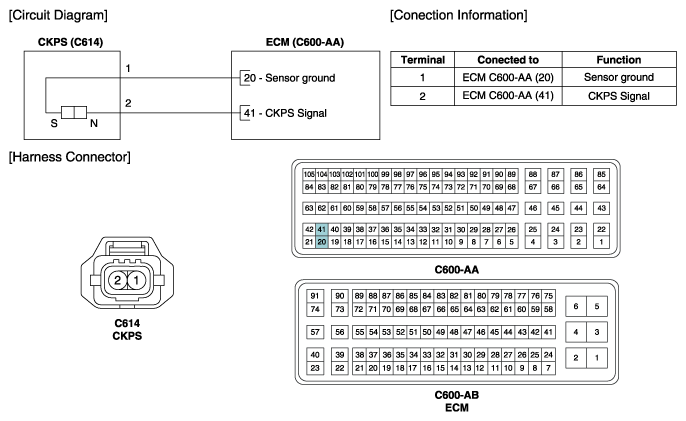

Fig 1: CKPS - Circuit Diagram (A/T)

G10537671

Courtesy of HYUNDAI MOTOR AMERICA
