Emission Control System Components

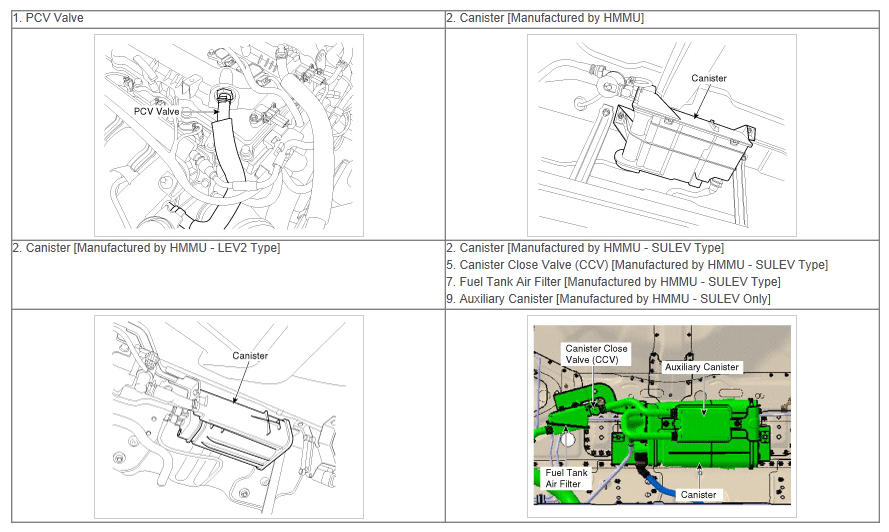

Fig 1: Emission Control System (3 Of 6)
G10530453Courtesy of HYUNDAI MOTOR AMERICA

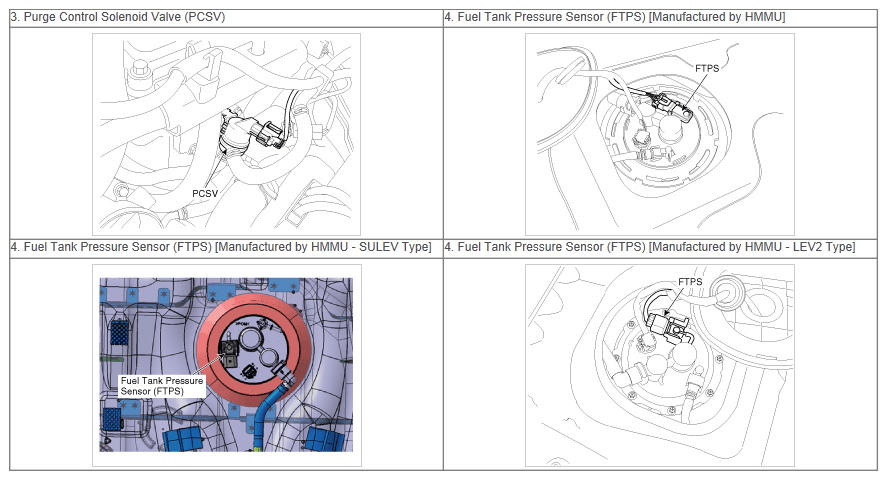

Fig 2: Emission Control System (4 Of 6)
G10530454Courtesy of HYUNDAI MOTOR AMERICA

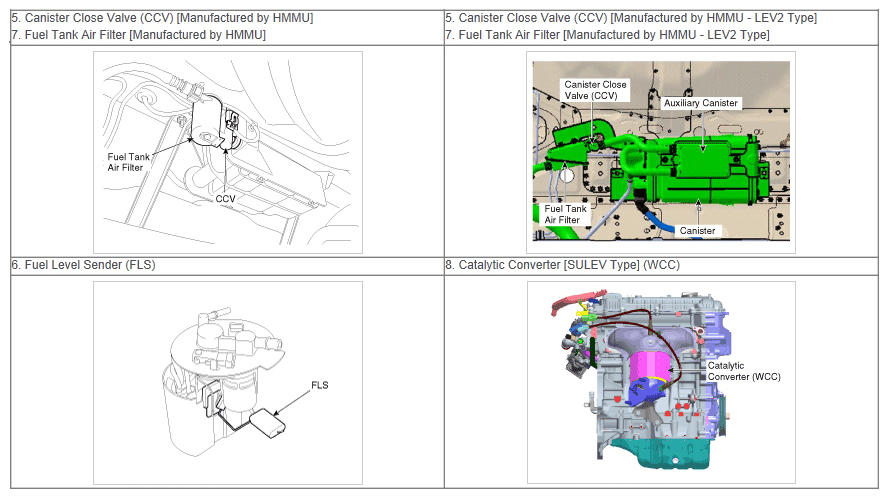

Fig 3: Emission Control System (5 Of 6)
G10530455Courtesy of HYUNDAI MOTOR AMERICA

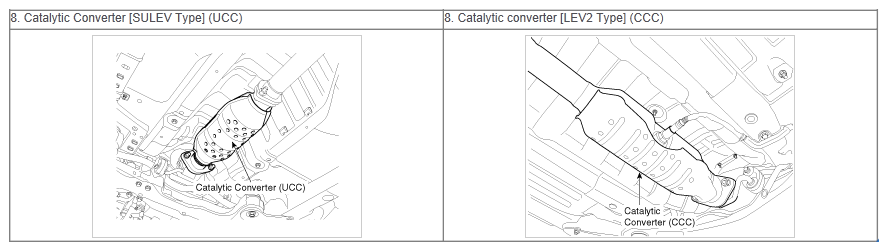

Fig 4: Emission Control System (6 Of 6)
G10530456Courtesy of HYUNDAI MOTOR AMERICA
