Special Service Tools
| Tool (Number and Name) | Illustration | Use |
|---|---|---|
| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transaxle. Use this adapter (SST No.: 09200-4X000) with the supporter (SST No.: 09200-2S000). * Permit operating with 09200-38001. |
|
| 09200-2S000 Engine support fixture (Supporter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000) and adapter (SST No.: 09200-4X000). |
|
| 09200-4X000 Engine support fixture (Adapter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000). |
|
| 09453-2F300 Oil seal installer |
Installation of transaxle case oil seal. |

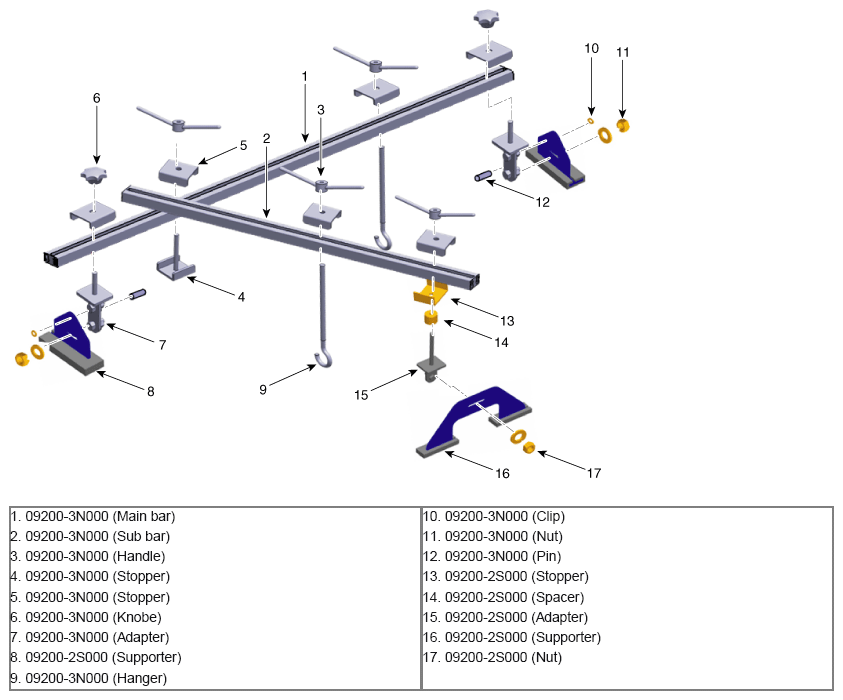

* Engine support fixture special tool assembly drawing
