Circuit Diagram: (M/T)

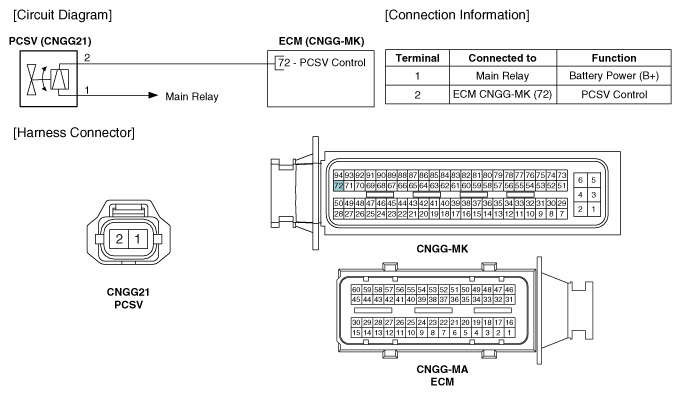

Fig 1: Purge Control Solenoid Valve Circuit Diagram (M/T)

G10749930

Courtesy of HYUNDAI MOTOR AMERICA
