Charging System: Battery: Troubleshooting

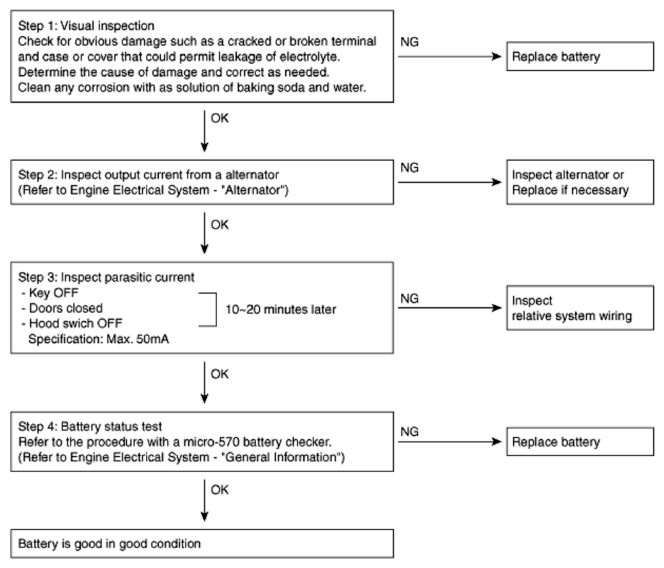

Fig 1: Battery Troubleshooting Flow Chart

G10749716

Courtesy of HYUNDAI MOTOR AMERICA
