Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views (Smart Junction Box) >> Connector End Views >> Smart Junction Block Connector End View (I/P-F)

Smart Junction Block Connector End View (I/P-F)

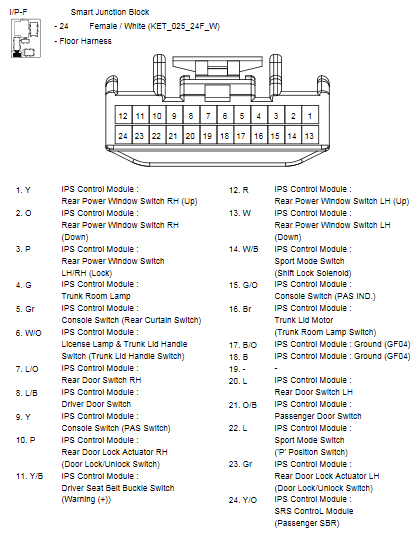

Fig 1: Smart Junction Block Connector End View (I/P-F)

G10776462

Courtesy of HYUNDAI MOTOR AMERICA
