Smart Junction Block Connector End View (I/P-A)

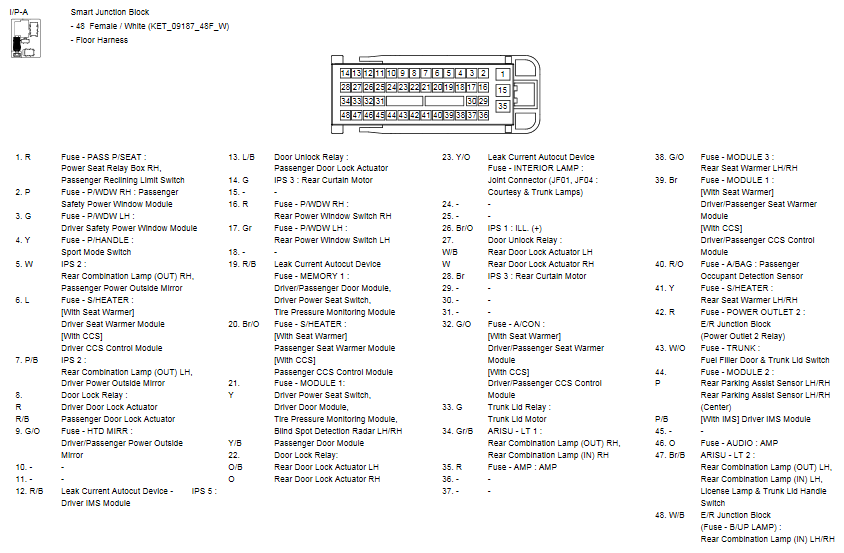

Fig 1: Smart Junction Block Connector End View (I/P-A)

G10776457

Courtesy of HYUNDAI MOTOR AMERICA
