Components and Components Location: Components

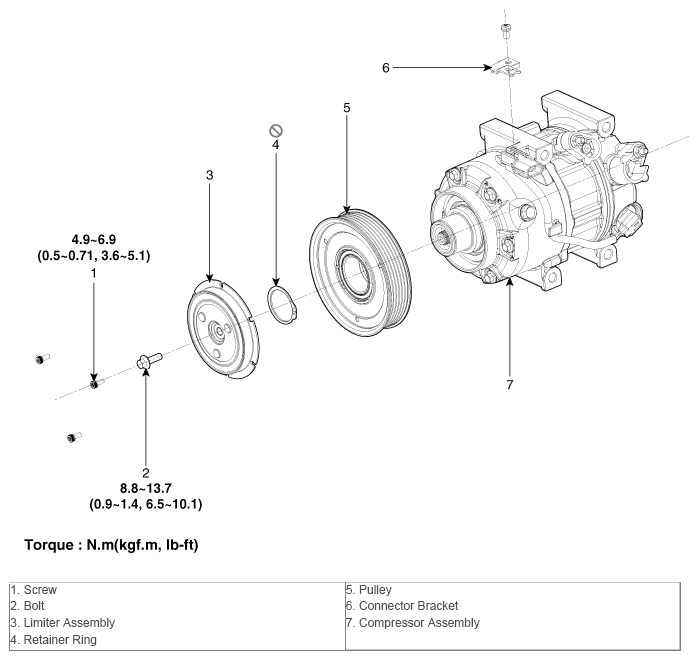

Fig 1: A/C Compressor Components With Torque Specifications

G10369767

Courtesy of HYUNDAI MOTOR AMERICA
