Power Circuit Inspection

■ Check voltage

1. IG "OFF" and Disconnect BPS connector.
2. IG "ON".
3. Measure the voltage between power terminal of BPS harness connector and ground.

   Specification:  Approx. 5V

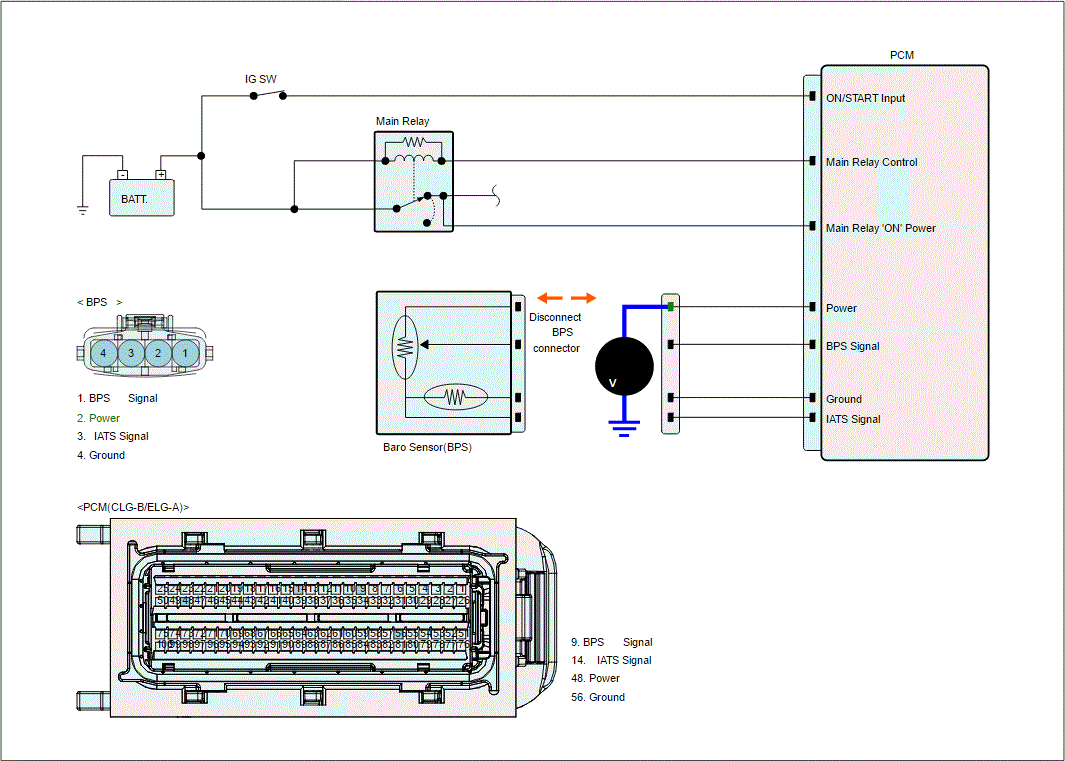

   Fig 1: Measuring Voltage Between Power Terminal Of BPS Harness Connector And Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "GROUND CIRCUIT INSPECTION " Procedure.

   NO

   • Repair open or short in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
