Ground Circuit Inspection

■ Check open in harness

1. IG "OFF" and disconnect Instrument cluster connector and Fuel Sender connector.
2. Measure resistance between ground terminal of Fuel Sender harness connector and Fuel ground terminal of Instrument cluster harness connector.

   Specification:  Below 1Ω

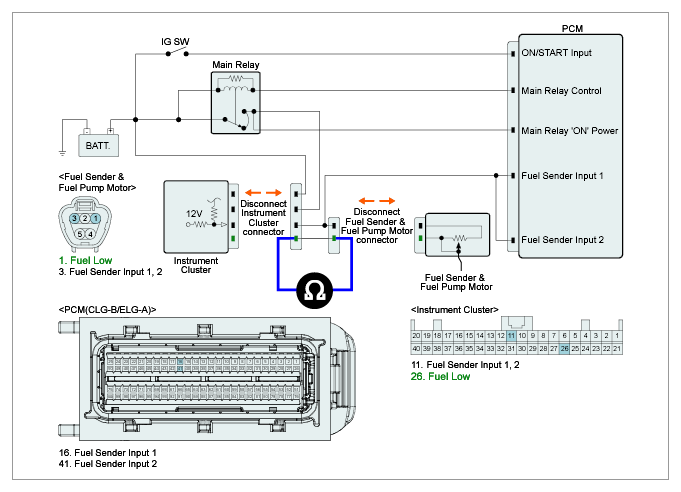

   Fig 1: Measuring Resistance Between Ground Terminal Of Fuel Sender Harness Connector And Fuel Ground Terminal Of Instrument Cluster Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Repair open in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
