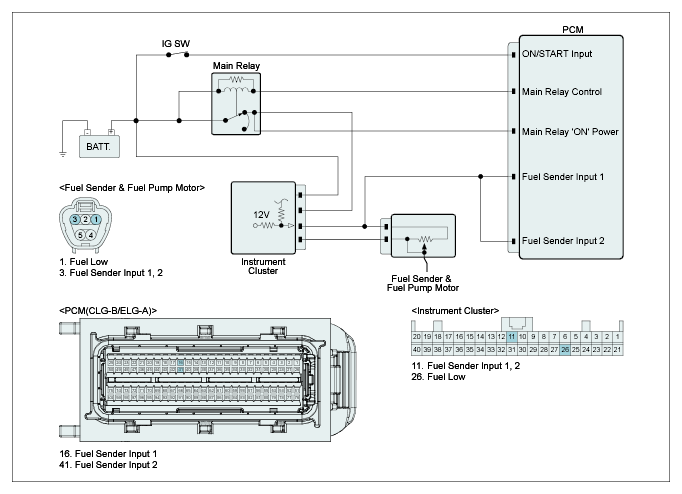

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) >> DTC P0463: Fuel Level Sensor 'A' Circuit High Input >> General Information >> Diagnostic Circuit Diagram
