Component Inspection

IG "OFF" & connect GDS.
ENG "ON" and Race the accelerator pedal at idle and Monitor "FTPS" parameter is changing while PCSV is operating on the service data.
Specification: Fuel Tank Pressure is O.K if pressure changes more than 0.2 while racing accelerator pedal.

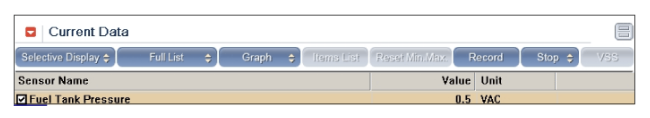

Fig 1: Screen Display - Sample Data At Idle With No Acceleration
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - Sample Data At Idle With Acceleration
Courtesy of HYUNDAI MOTOR AMERICA
Does the FTPS change while racing the accelerator pedal at idle?
YES
- Fault is intermittent. Drive the vehicle to satisfy the enable condition then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good FTPS and check for proper operation. If the problem is corrected, replace FTPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
