Component Inspection

■ Check CCV

1. IG "OFF" and disconnect CCV connector.
2. Measure resistance between power and control terminals of CCV connector. (Component side)

   Specification:  19.8 ~ 21.8 Ω (20°C(68°F))

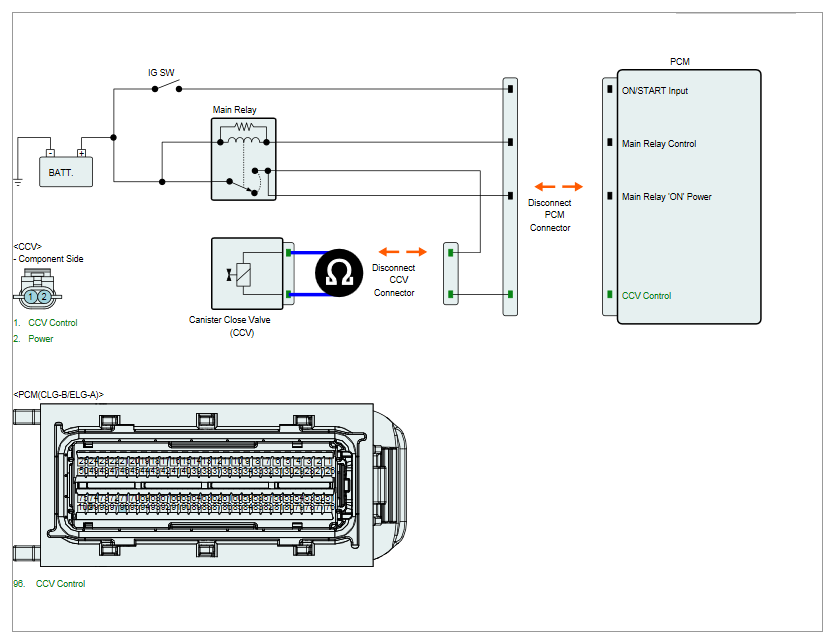

   Fig 1: Measuring Resistance Between Power And Control Terminals Of CCV Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Substitute with a known - good PCM and check for proper operation.

     If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good CCV and check for proper operation.

     If the problem is corrected, replace CCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
