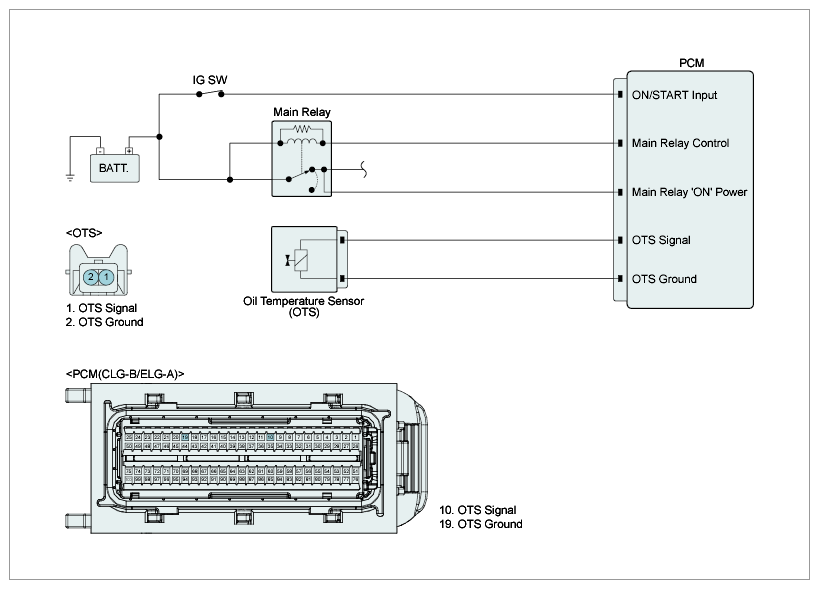

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) >> DTC P0197: Engine Oil Temperature Sensor Low Input >> General Information >> Diagnostic Circuit Diagram
