Signal Waveform & Data

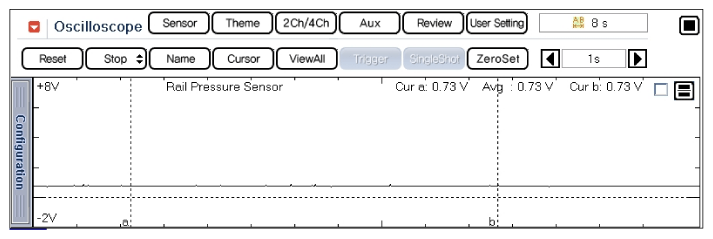

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G10372786Courtesy of HYUNDAI MOTOR AMERICA

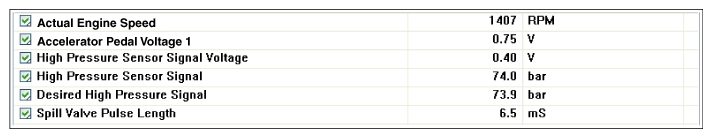

Fig 2: Screen Display - Fuel Rail Pressure Sensor
G10372787Courtesy of HYUNDAI MOTOR AMERICA

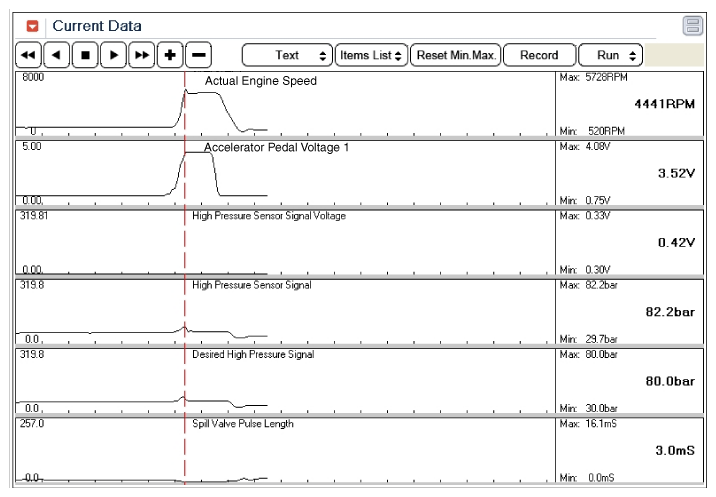

Fig 3: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G10372788Courtesy of HYUNDAI MOTOR AMERICA
