Schematic Diagram

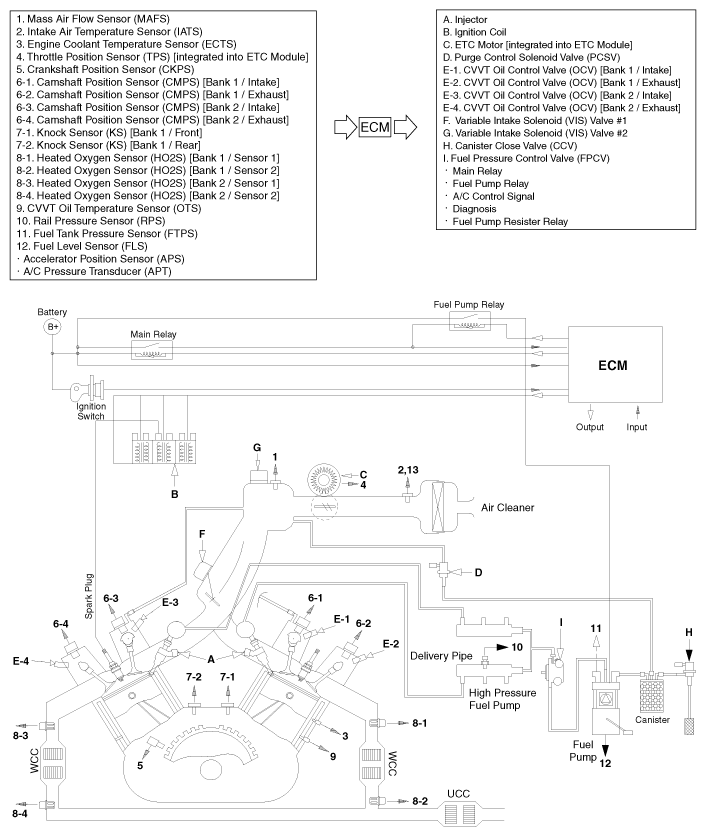

Fig 1: Emission Control System Schematic Diagram

G10367323

Courtesy of HYUNDAI MOTOR AMERICA
