PSM Signal Circuit Inspection

Check CAN High Line
1. IG "ON" & ENG "OFF".
2. After connect GDS, select "Oscilloscope" mode.
3. Measure the signal waveform on PSM CAN High line.
  Specification: Refer to "SIGNAL WAVEFORM & DATA "

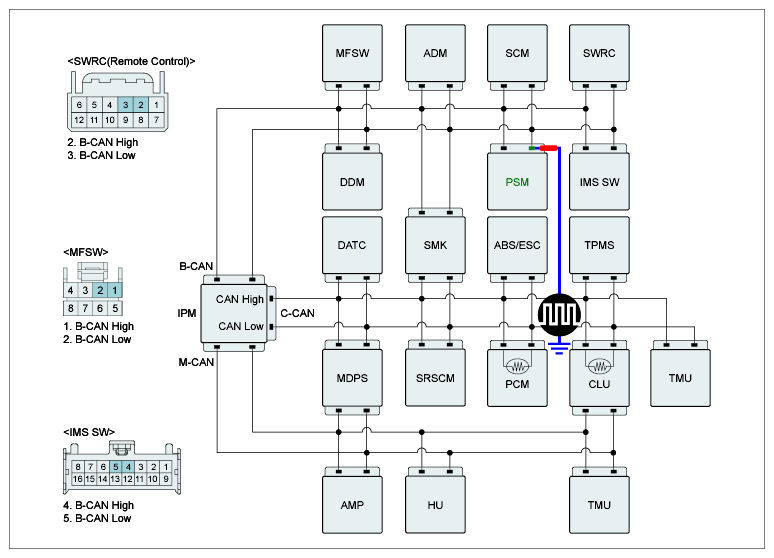

  Fig 1: PSM CAN High Line Circuit Diagram
  Courtesy of HYUNDAI MOTOR AMERICA

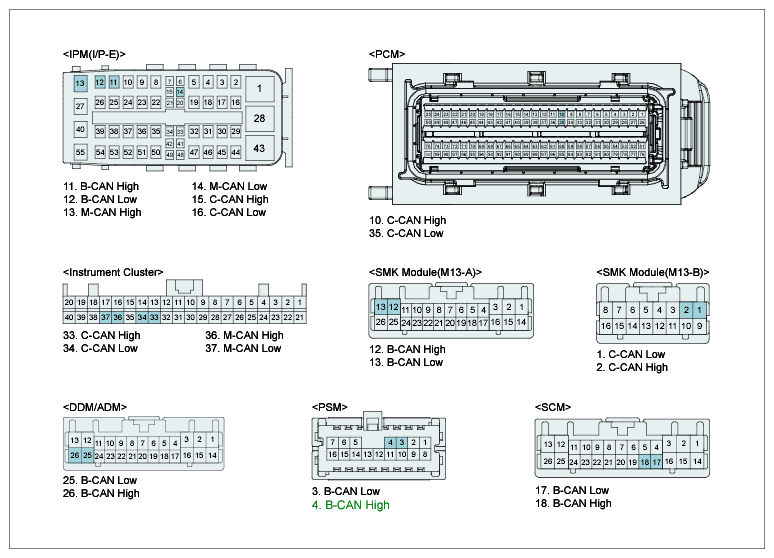

  Fig 2: CAN Terminals
  Courtesy of HYUNDAI MOTOR AMERICA
4. Does the measured signal waveform follow the specification?
  YES
  - Go to " CAN LOW LINE INSPECTION" procedure.
  NO
  - Check short to battery or ground. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check CAN Low Line
1. IG "ON" & ENG "OFF".
2. After connect GDS, select "Oscilloscope" mode.
3. Measure the signal waveform on PSM CAN Low line.
  Specification: Refer to "SIGNAL WAVEFORM & DATA "

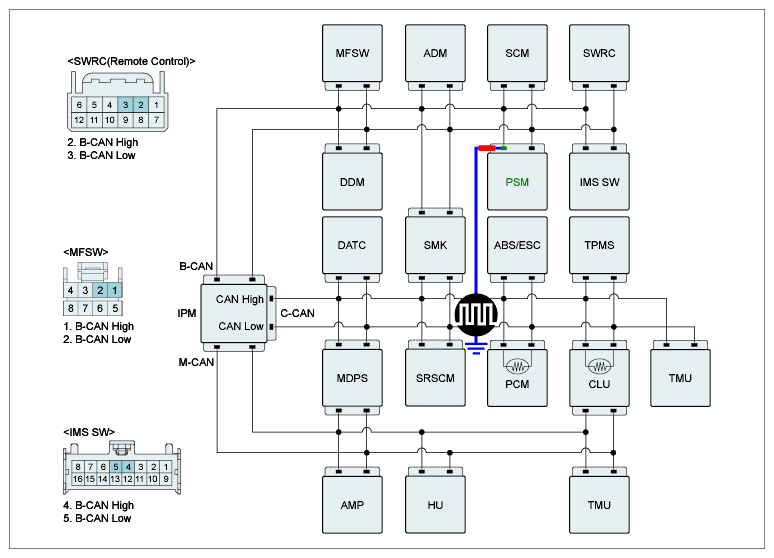

  Fig 3: IPM Circuit Diagram
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 4: CAN Terminals
  Courtesy of HYUNDAI MOTOR AMERICA
4. Does the measured signal waveform follow the specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Check short to battery or ground. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
