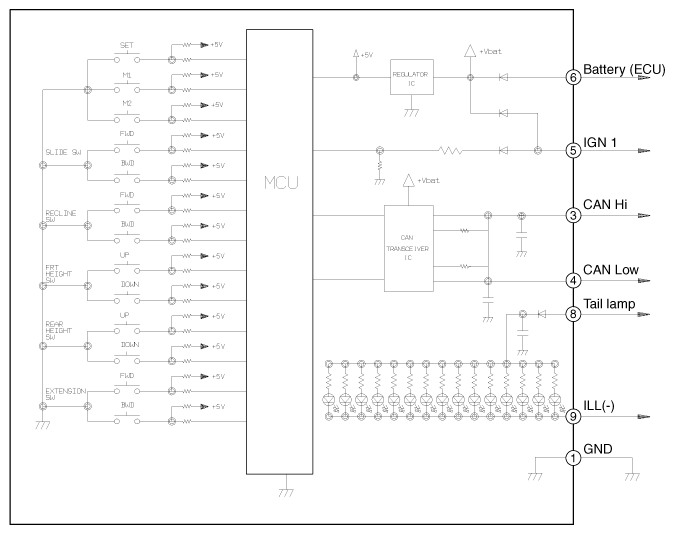

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> IMS Power Seat Control >> Schematic Diagrams >> Circuit diagram
