Circuit Diagram

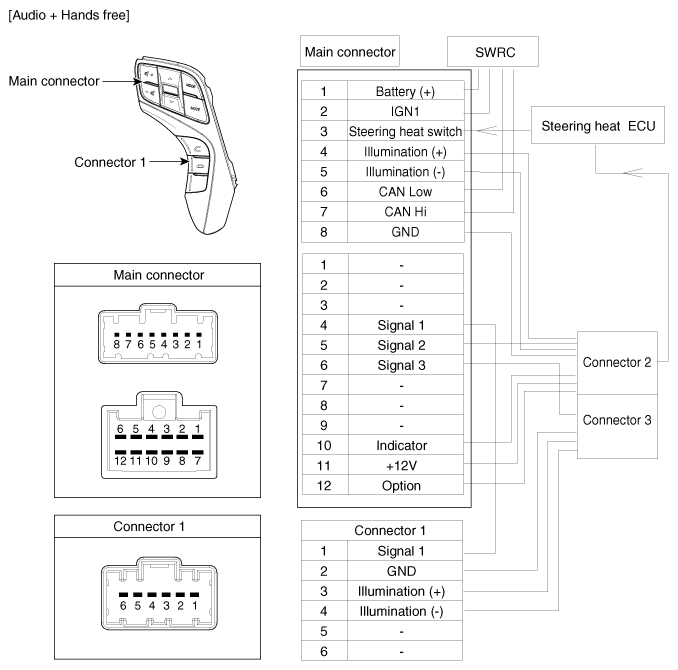

Fig 1: SWRC Schematic Diagrams (1 Of 2)

G10368750

Courtesy of HYUNDAI MOTOR AMERICA

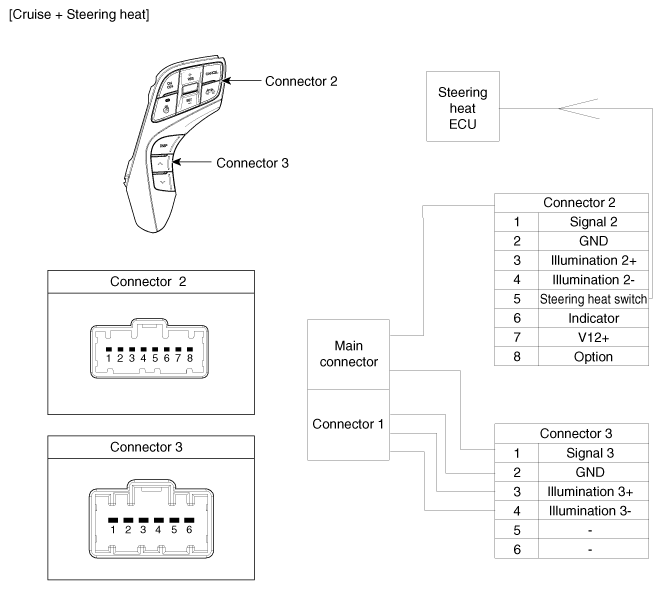

Fig 2: SWRC Schematic Diagrams (2 Of 2)

G10368751

Courtesy of HYUNDAI MOTOR AMERICA
