Signal Waveform & Data

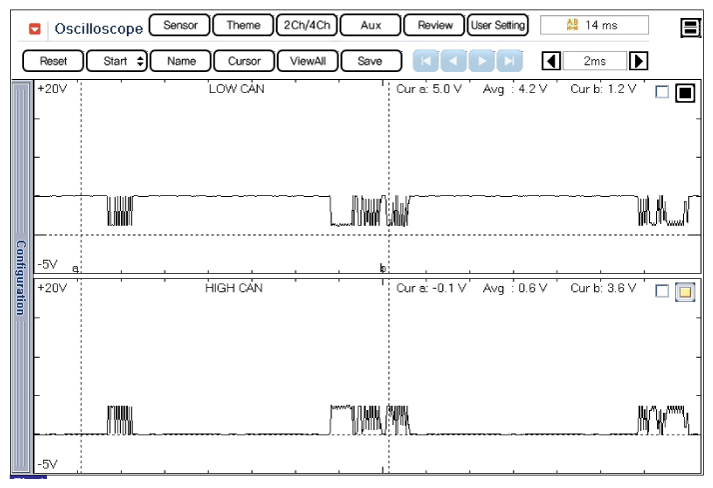

Fig 1: Screen Display - CAN Low/High Signal Waveform
G10370742Courtesy of HYUNDAI MOTOR AMERICA

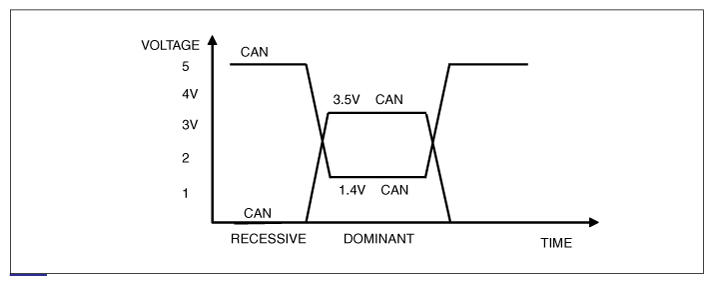

Fig 2: Screen Display - CAN BUS Voltage Level (Low Speed CAN)
G10370743Courtesy of HYUNDAI MOTOR AMERICA
