Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "Parameters related to Ignition and Misfire" parameter on the "Current Data"  with GDS.

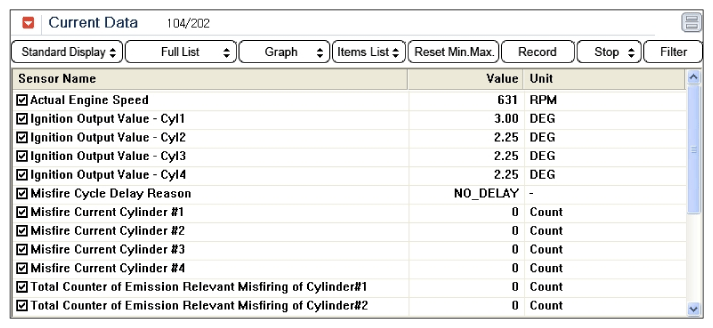

    Fig 1: Screen Display - Parameters Related To Ignition And Misfire Parameter On Current Data
    G10608752Courtesy of HYUNDAI MOTOR AMERICA

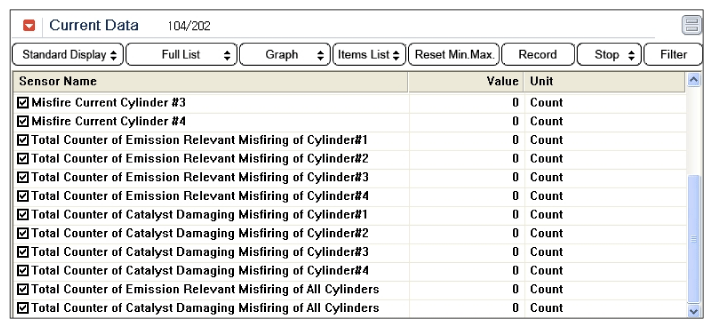

    Fig 2: Screen Display - Parameters Related To Misfire Parameter On Current Data
    G10608753Courtesy of HYUNDAI MOTOR AMERICA
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
