Circuit Diagram

(M/T)

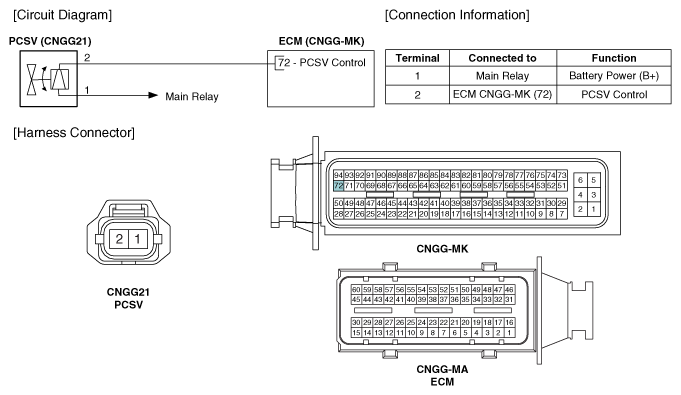

Fig 1: Purge Control Solenoid Valve Circuit Diagram (M/T) With Connector End Views
G10604603Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

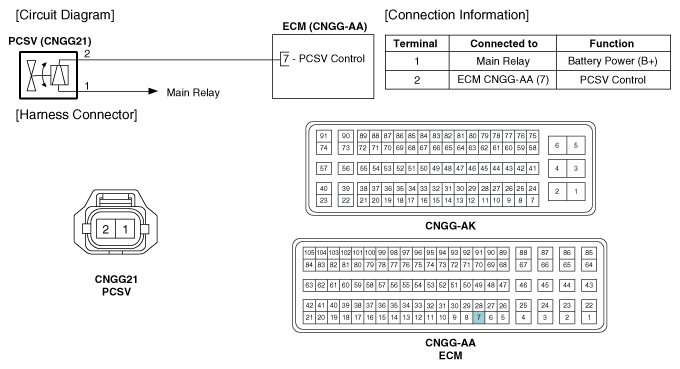

Fig 2: Purge Control Solenoid Valve Circuit Diagram (A/T) With Connector End Views
G10604604Courtesy of HYUNDAI MOTOR AMERICA
