Circuit Diagram

(M/T)

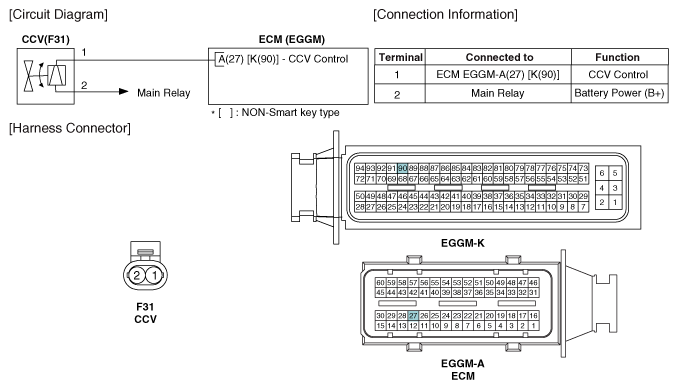

Fig 1: Canister Close Valve Circuit Diagram (M/T) With Connector End Views
G10604626Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

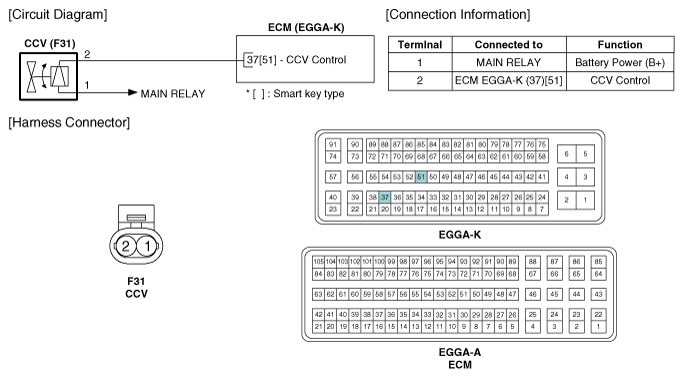

Fig 2: Canister Close Valve Circuit Diagram (A/T) With Connector End Views
G10604627Courtesy of HYUNDAI MOTOR AMERICA
