Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

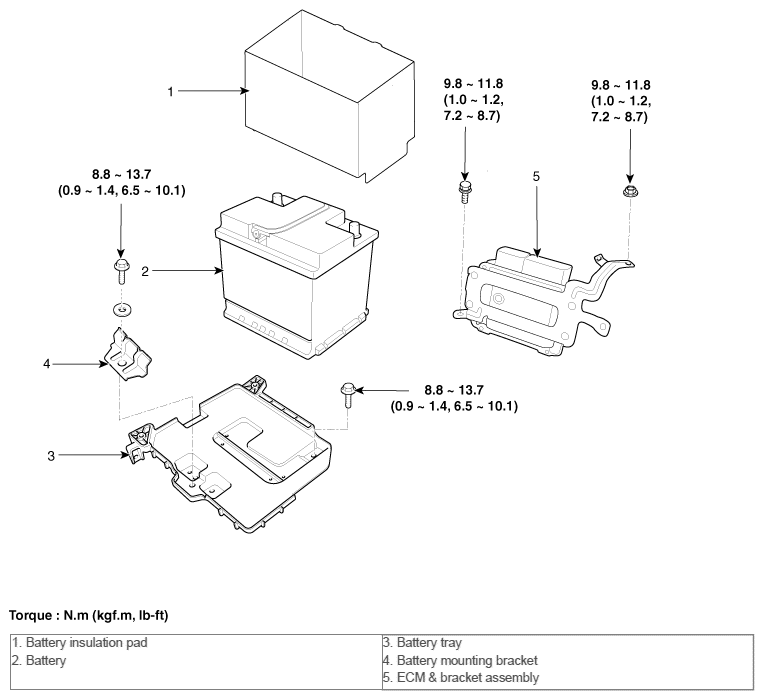

Fig 1: Battery Replacement Components With Torque Specification
G10604398Courtesy of HYUNDAI MOTOR AMERICA
