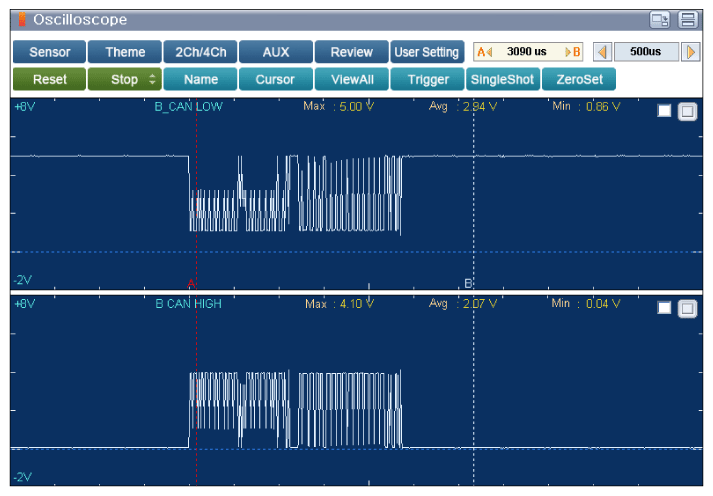

Home >> Hyundai >> 2015 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Body Control Module Diagnosis >> DTC B1699: CAN timeout between IPM and AVAVN >> Specification >> Signal Waveform & Data
