GDS Data Analysis

■ Variant Coding (in case that the GDS is connected to the Internet)

1. Connect GDS to Data Link Connector (DLC).
2. IG "ON".
3. Perform variant coding in "Vehicle S/W Management  " menu of the GDS. (Fig 1)

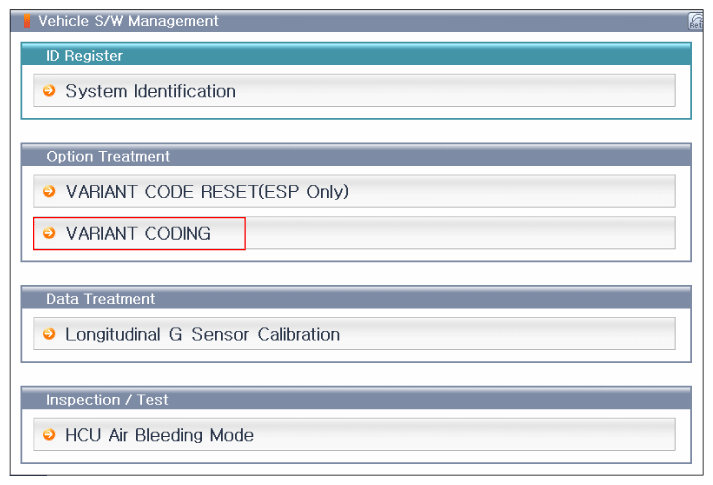

Fig 1: Variant Coding In Vehicle S/W Management Screen Display (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

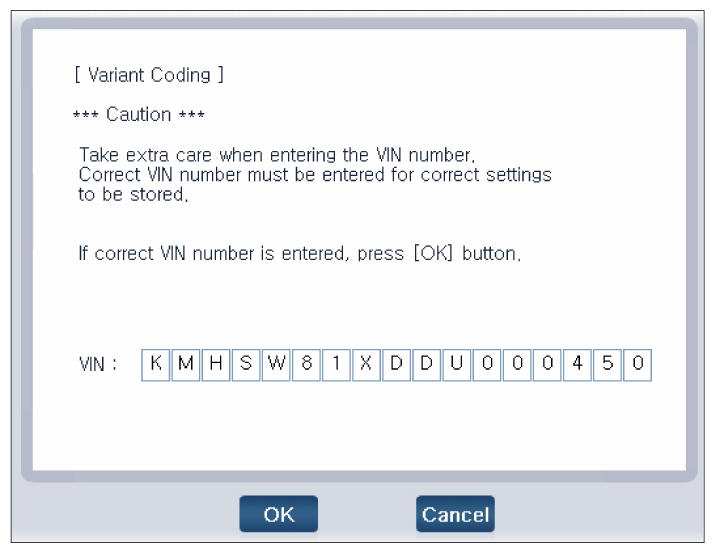

Fig 2: Variant Coding Screen Display (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

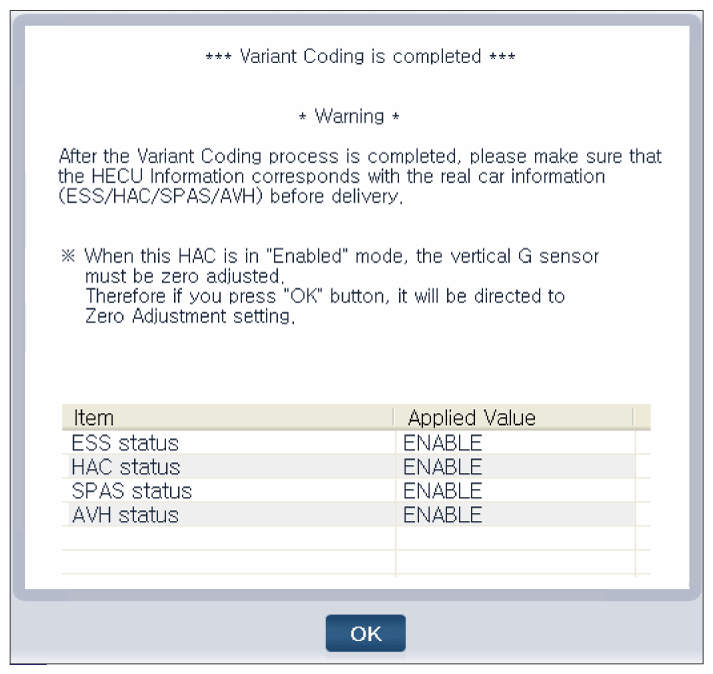

Fig 3: Variant Coding Completed Screen Display (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

■ Variant Coding (in case that the GDS isn't connected to the Internet)

1. Connect GDS to Data Link Connector (DLC).
2. IG "ON".
3. Perform variant coding in "Vehicle S/W Management  " menu of the GDS. (Fig 4)
4. Log in GSW website (http://ccc.hyundai-motor.com/) and then click "VIN Search" at the top center side of the screen.
5. Select ESP and fill in VIN Number (or Body Number) correctly, and check ESC code. (Fig 5)
6. Fill in the blank with ESC code checked in GSW web site. (Fig 6)
7. Check whether current variant code corresponds to the options which are applied to the vehicle.
8. IG "OFF" and wait for about 10 seconds, and then IG "ON". Go to "Variant Code Reset" Procedure.
   NOTE: In case that the state of HAC is enabled, operate "Longitudinal G Sensor Calibration" by GDS. (refer to C1285 ).

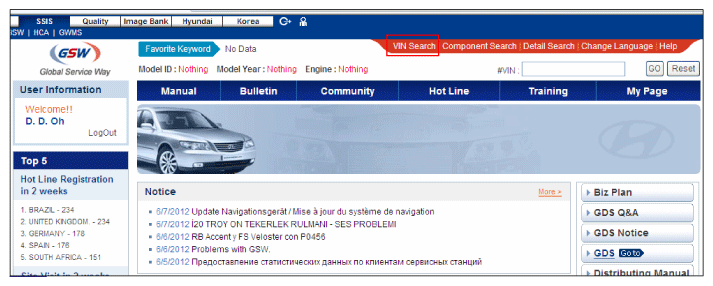

Fig 4: VIN Search Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

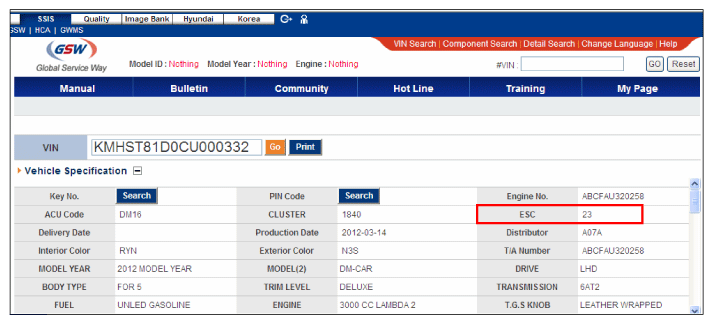

Fig 5: ESC Code Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

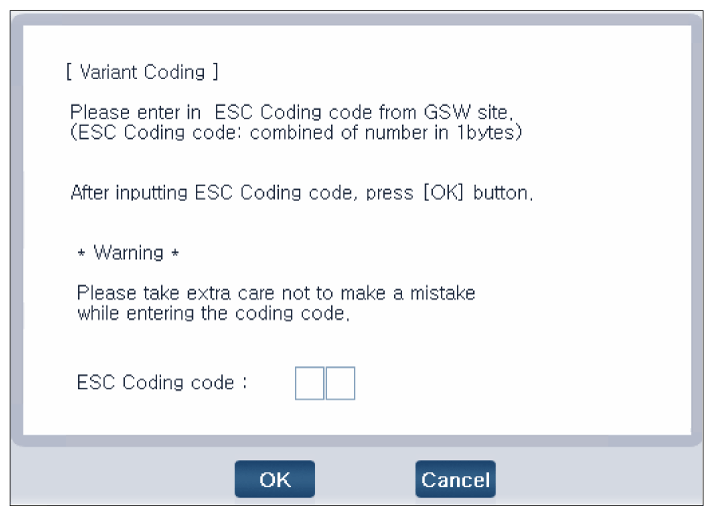

Fig 6: Variant Coding Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

■ Variant Code Reset

1. Check for improper installation of ECM/TCM/ESC/4WD/DCT/ACU/EPB ECU.
2. Check for wrong 4WD ECU installation.
3. Check for wrong G sensor installation.
4. Check for wrong DCT ECU installation.
5. Check for wrong TCM installation.
6. Check for wrong EPB ECU installation.
7. Connect GDS to Data Link Connector.
8. IG "ON".
9. Perform Variant Code Reset in Vehicle S/W Management menu of the GDS. (Fig 7)
10. IG "OFF" and wait for about 10 seconds, and then IG "ON". Go to "COMPONENT INSPECTION " Procedure.

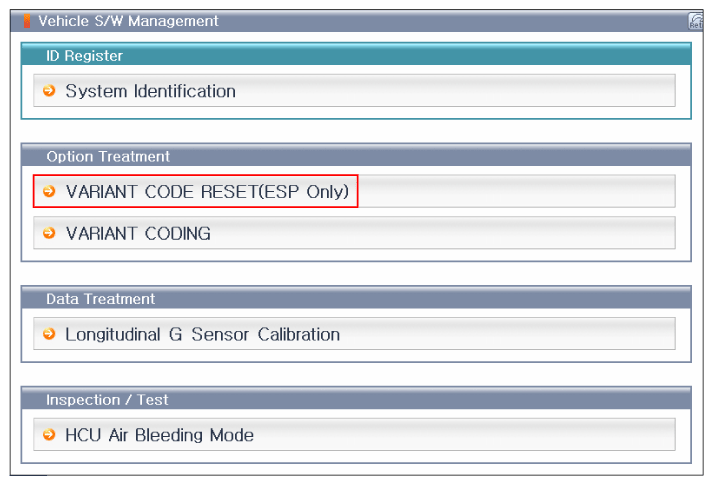

Fig 7: Variant Code Reset In Vehicle S/W Management Screen Display

Courtesy of HYUNDAI MOTOR AMERICA
