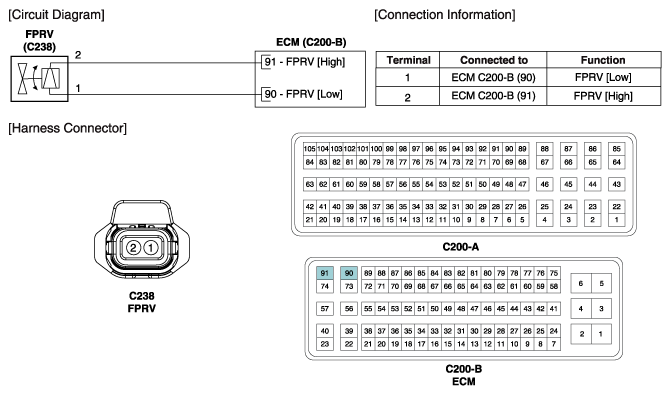

Home >> Hyundai >> 2015 >> Sonata Limited 2.0T >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L (Except HEV) >> Fuel Pressure Control Valve >> Schematic Diagrams >> Circuit Diagram
