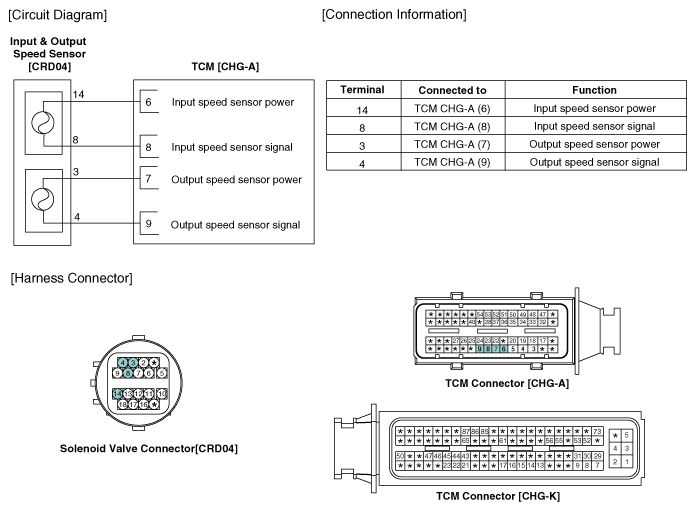

Home >> Hyundai >> 2015 >> Sonata Hybrid >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (HEV) >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
