Circuit Diagram

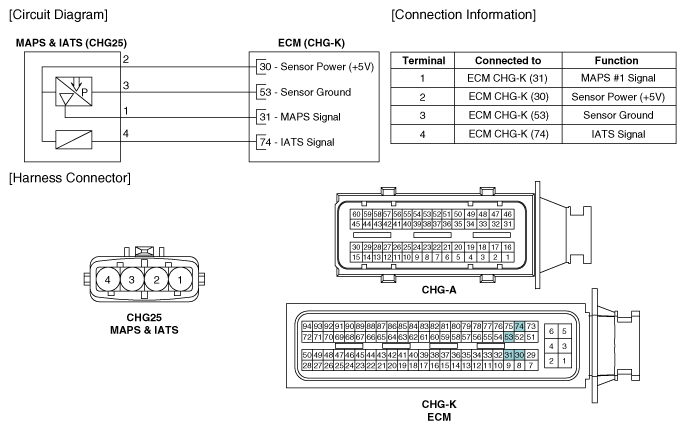

Fig 1: MAPS Circuit Diagram & Connector End Views

G10588624

Courtesy of HYUNDAI MOTOR AMERICA
