Circuit Diagram

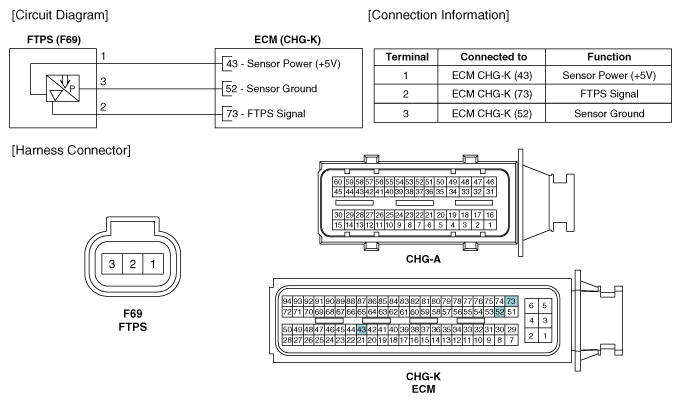

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram & Connector End Views

G10588655

Courtesy of HYUNDAI MOTOR AMERICA
