Circuit Diagram

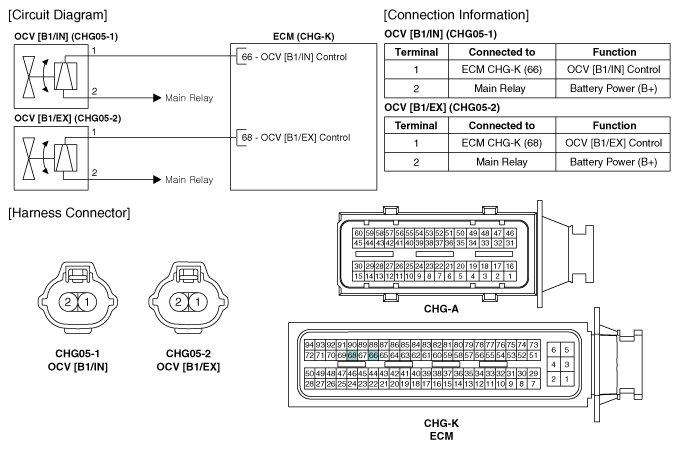

Fig 1: CVVT Oil Control Valve Circuit Diagram With Connector End Views

G10588667

Courtesy of HYUNDAI MOTOR AMERICA
