Component Location

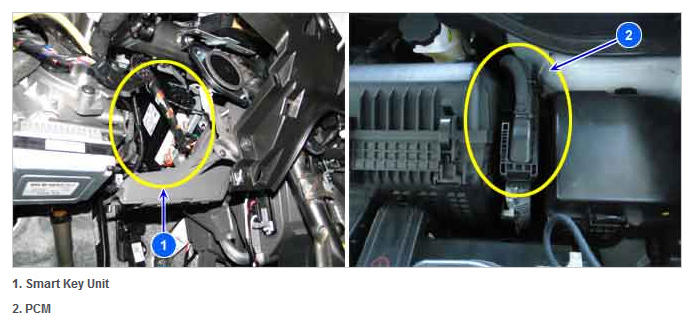

Fig 1: Smart Key Unit And PCM Location

G10579506

Courtesy of HYUNDAI MOTOR AMERICA
