Calibration Mode

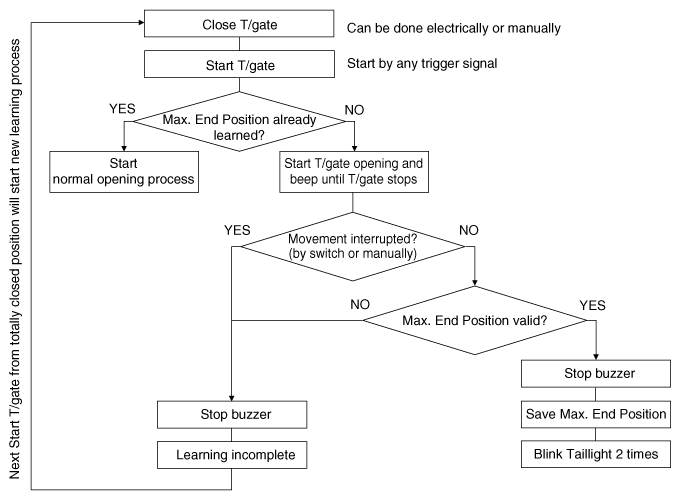

Fig 1: Liftgate System Flow Chart - Calibration Mode

G10576963

Courtesy of HYUNDAI MOTOR AMERICA
