Signal Waveform & Data

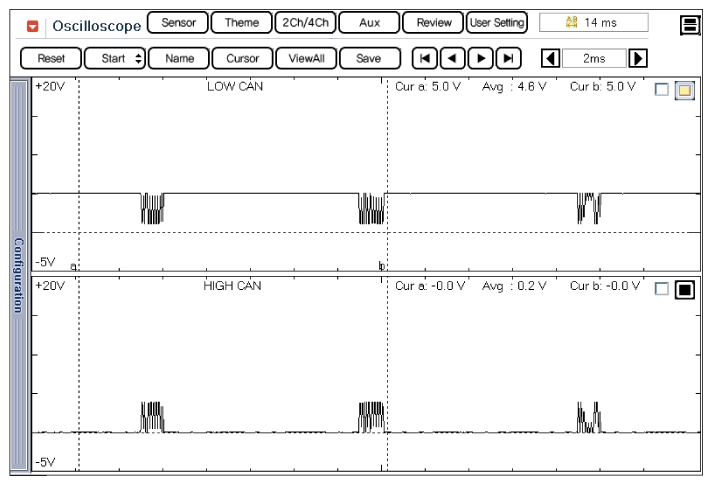

Fig 1: Display - Body CAN High/Low Normal Waveform

G10389061

Courtesy of HYUNDAI MOTOR AMERICA

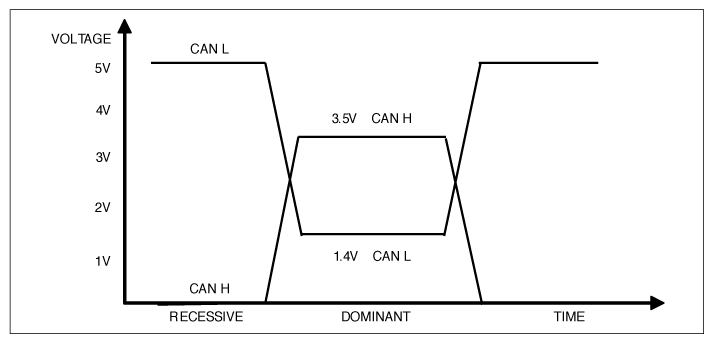

Fig 2: Display - Body CAN Normal Voltage Level

G10389062

Courtesy of HYUNDAI MOTOR AMERICA
