Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor Switch" parameter.
  4. Change a shift lever from P-range to D-range.

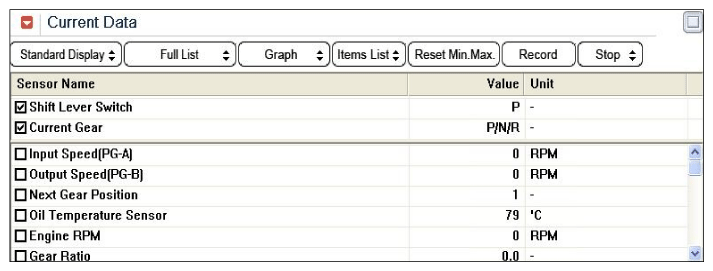

    Fig 1: Display - Inhibitor Switch Current Data Screen (P Range)
    G10753969Courtesy of HYUNDAI MOTOR AMERICA

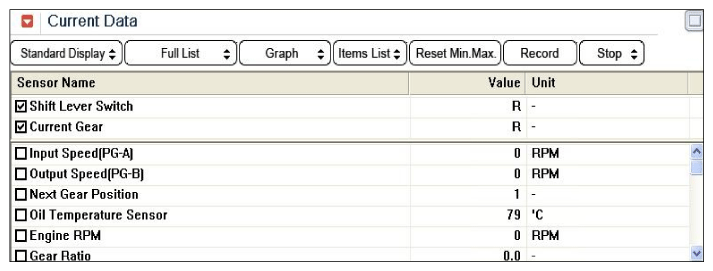

    Fig 2: Display - Inhibitor Switch Current Data Screen (R Range)
    G10753970Courtesy of HYUNDAI MOTOR AMERICA

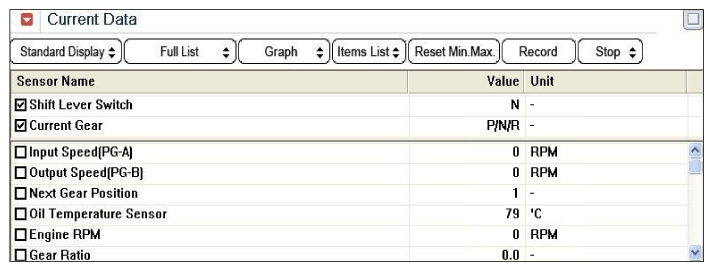

    Fig 3: Display - Inhibitor Switch Current Data Screen (N Range)
    G10753971Courtesy of HYUNDAI MOTOR AMERICA

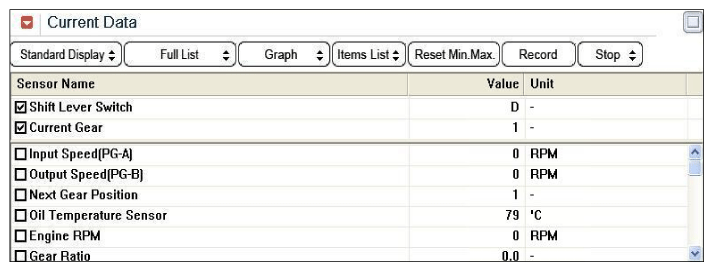

    Fig 4: Display - Inhibitor Switch Current Data Screen (D Range)
    G10753972Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705 can happen When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor, so DO NOT replace "Inhibitor Switch" and Check the Alignment of Shift Cable.
