Passenger/Rear Power Window Switch

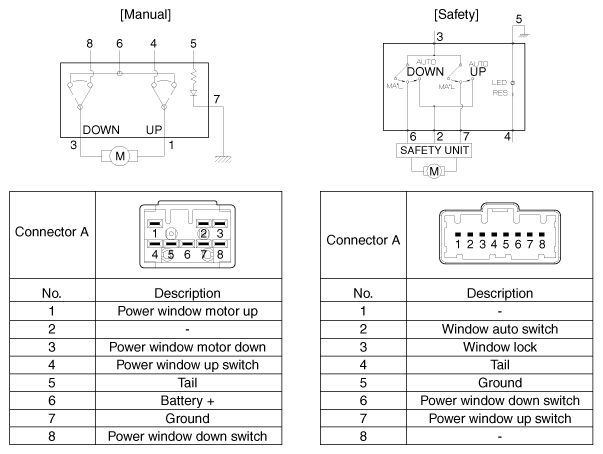

Fig 1: Power Window Switch - Circuit Diagram (Passenger/Rear Power Window Switch)

G10751575

Courtesy of HYUNDAI MOTOR AMERICA
