Home >> Hyundai >> 2015 >> Elantra Coupe GL, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> General Information - Emission Control System >> General Information >> Schematic Diagram

Schematic Diagram

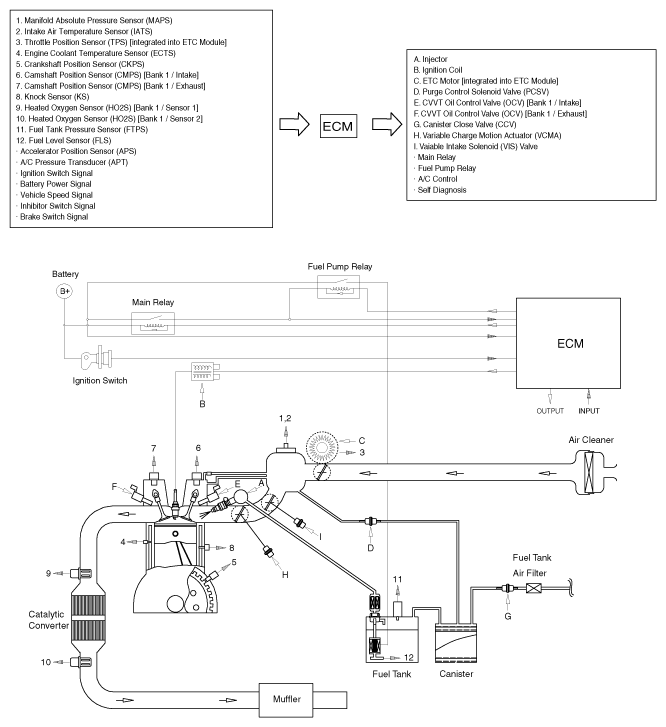

Fig 1: Emission Control System Schematic Diagram

G10544199

Courtesy of HYUNDAI MOTOR AMERICA
