Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to: Body procedure - "CRASH PAD ").

  3. Remove the crash pad side switch assembly (A).

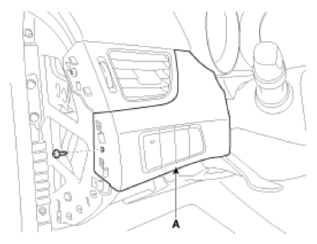

    Fig 1: Removing Crash Pad Side Switch Assembly
    G10545147Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the ESC OFF switch connector (A).

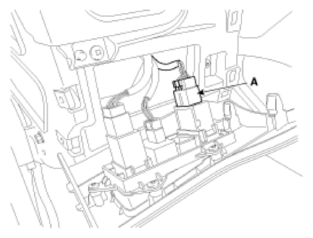

    Fig 2: ESC OFF Switch Connector Location
    G10545148Courtesy of HYUNDAI MOTOR AMERICA
  5. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 3: ESC OFF Switch Terminals Continuity Chart
    G10545149Courtesy of HYUNDAI MOTOR AMERICA
