Components and Components Location: Components

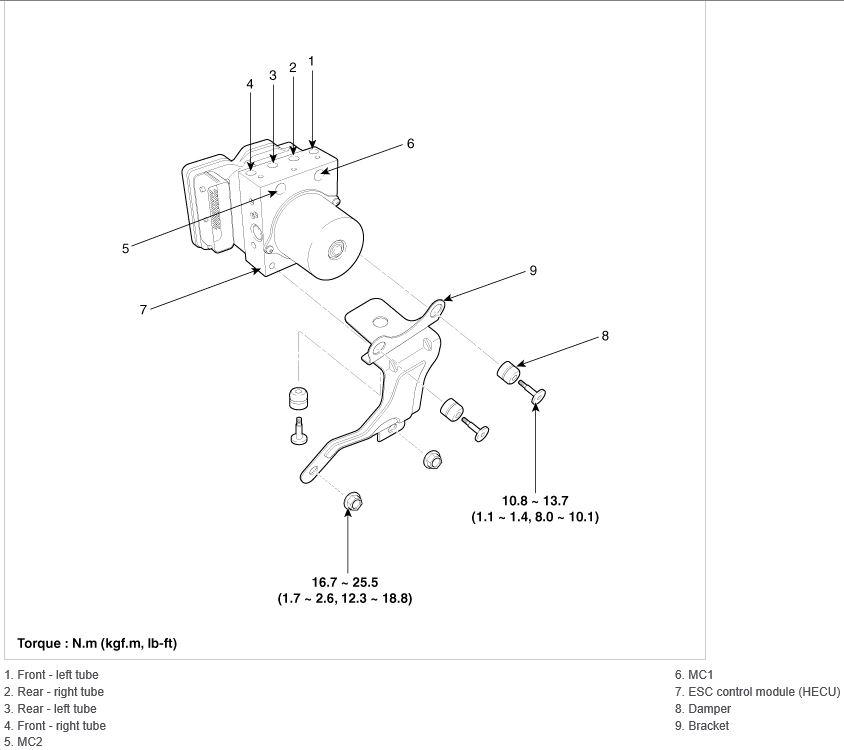

Fig 1: ESC Control Module Related Components With Torque Specification

G00564080

Courtesy of HYUNDAI MOTOR AMERICA
