Components and Components Location: Components

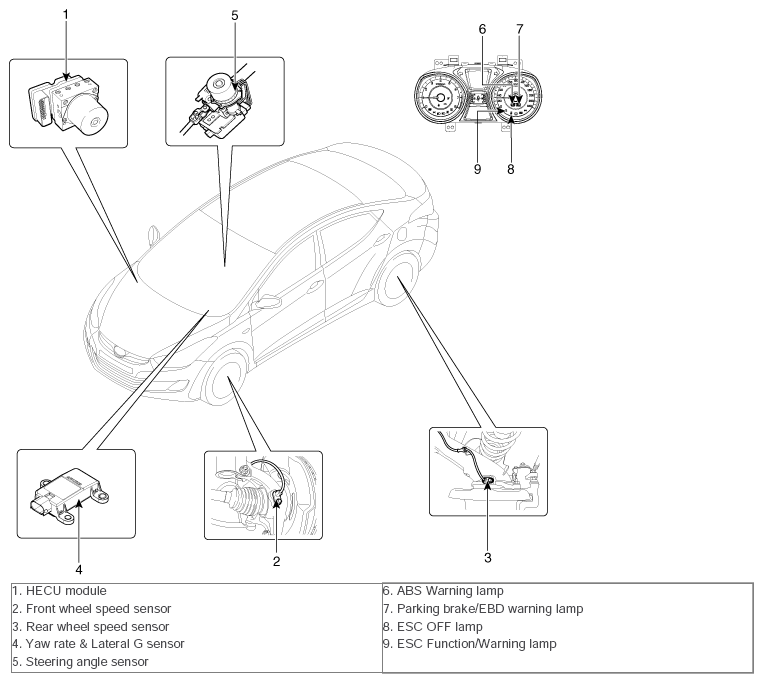

Fig 1: ESC System Related Components Location

G10545102

Courtesy of HYUNDAI MOTOR AMERICA
