Driver Power Window Switch

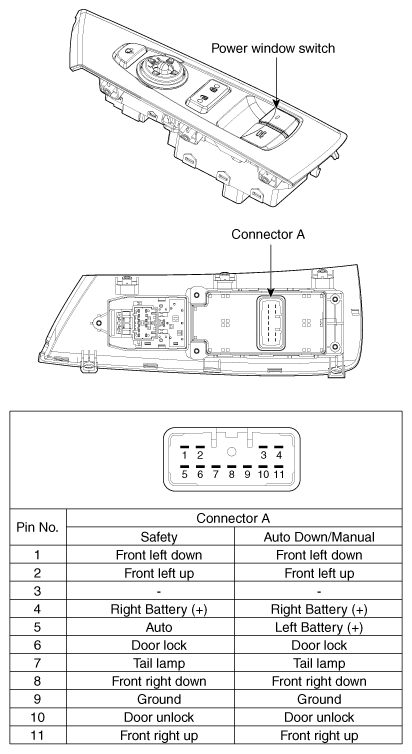

Fig 1: Driver Power Window Switch Connector Terminal

G10545783

Courtesy of HYUNDAI MOTOR AMERICA
