MDPS Unit Connector End View (M26)

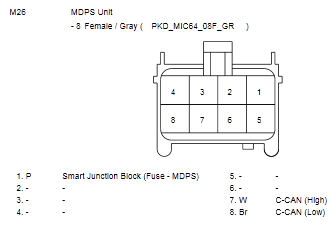

Fig 1: MDPS Unit Connector End View (M26)

G10776159

Courtesy of HYUNDAI MOTOR AMERICA
