Component Inspection

Check internal errors of CAN communication units.

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Replace SWRC with the new one and check DTC again.

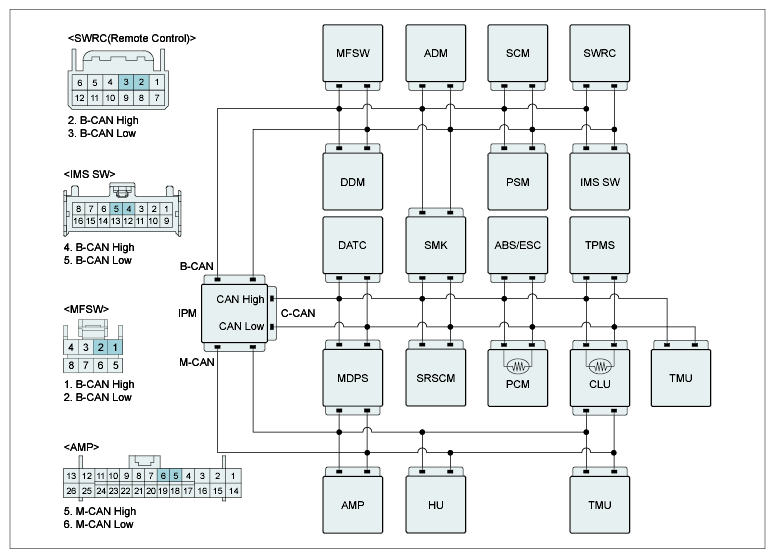

   Fig 1: Checking Internal Errors Of CAN Communication Units

   Courtesy of HYUNDAI MOTOR AMERICA

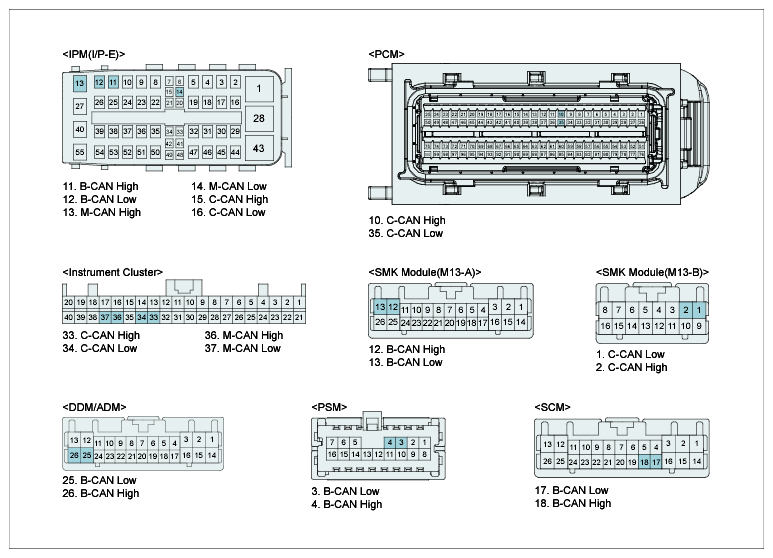

   Fig 2: CAN Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the code erased?

   YES

   • Substitute with a known - good unit and check for proper operation.

   If the problem is corrected, replace the unit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
