Signal Waveform & Data

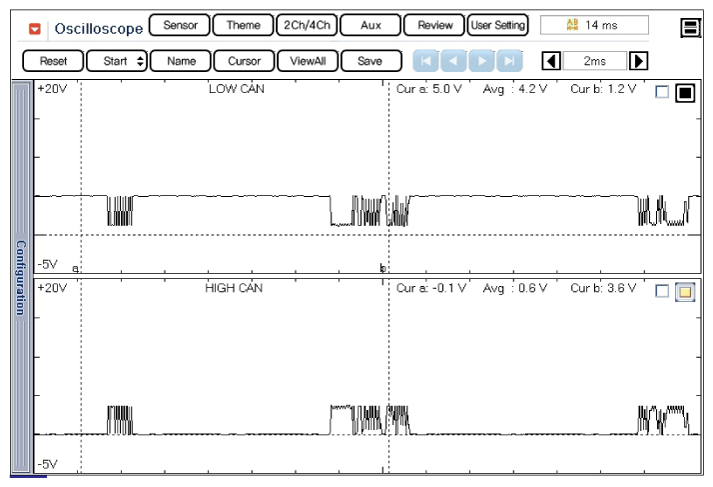

Fig 1: Screen Display - CAN Low/High Signal Waveform
G10370755Courtesy of HYUNDAI MOTOR AMERICA

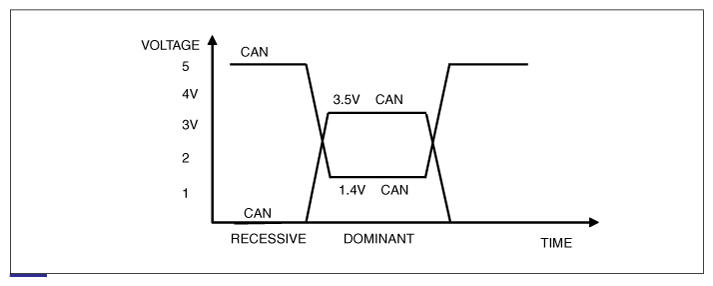

Fig 2: Screen Display - CAN BUS Voltage Level (Low Speed CAN)
G10370756Courtesy of HYUNDAI MOTOR AMERICA
